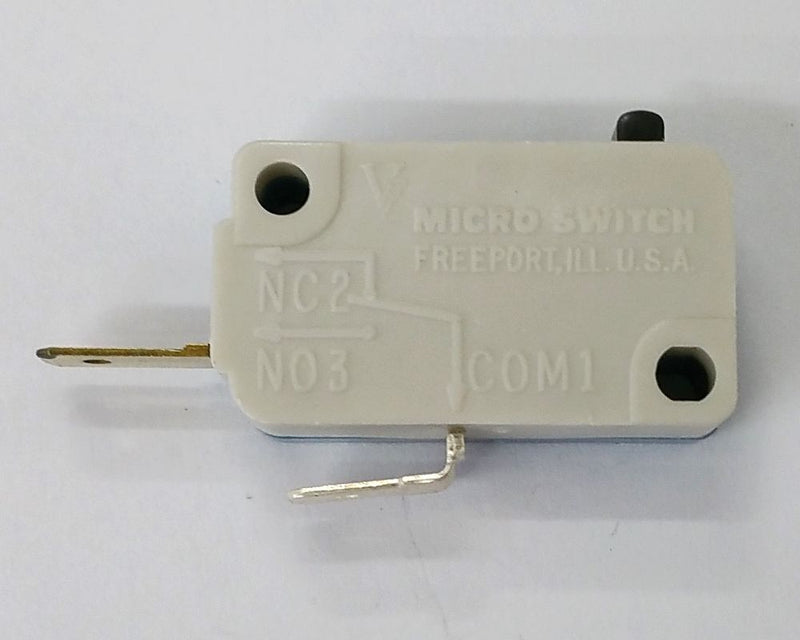

ONE (1) NEW Micro Switch model # V7-1A23D8-000-1, SPST-N/O OFF-(ON) Normally Open Pin Plunger Snap Action Switch. The V7 Series of Switches is a Premium Grade Switch Designed for High Reliability and Long Life (up to 10,000,000 cycles).
This Switch has 2 positions: OFF at Rest ~ & ~ MOMENTARY (ON) When the Pin Plunger is Depressed.
This switch is New Old Stock from a bulk case, with no retail packaging.
- Actuator: Pin Plunger
- Actuating Force: 150g Max.
- Function: SPST-N/O OFF-(ON) Normally Open Snap Action Pin Plunger
- Contact Ratings: 5A @ 125V AC, 250V AC & 277V AC. 1/10AHP @ 250V AC.
- Dimensions: Body Length ~1.14" (28.8mm), Body Height ~ 0.625: (15.85mm); Body Width ~ 0.399" (10.14mm), Pin Height ~ 0.11" (2.8mm)
- Center to Center Mounting Hole Distance: 0.880" (22.2mm).
- Termination: 2 Quick Slide Terminals 0.187" (4.75mm)
- Operating Life: Up to 10,000,000 Cycles
